Following the Conceptual and Preliminary design stage we perform the detail design and analysis of the air vehicle, or the modification. This task is done in compatible to the relevant aviation regulations and requirements (such as FAR's and MIL STD's) We will support the customer along the manufacturing of the vehicles parts, the assembly of it, the ground and flight test, we will establish the required documentation for military or civil certifications and will support the certification process. Some examples of Structural design and analysis which performed by Mr. Artzi: The Kfir Nose structure and systems (Radar) installation.
The Kfir wing modification – adding "Saw-Tooth" to the Wing leading edge including preliminary design, structural design for test flights – to evaluate the aerodynamics characteristics and finally detail design of the serial production configuration.
Astra Business Jet Aircraft- Design of the Carry-Through Structure which is the main structural element that connected the wing to the fuselage and transferring the loads.
Westwind 1125 Aircraft – Design of Winglet which were connected to the wing tip fuel tanks and was made of Aluminum machined beams ribs and skin. And special nose Radom for Sea-Scan configuration – composite structure with Quick release connections .
Phalcon Design and analysis of 2 by 10 meters array antenna supporting structure and its connection fittings to a pressurized deflected fuselage. Concept which ensure that the antenna will remain flat with no effect of the fuselage deformations.
Design of reconnaissance pod for Fighter aircraft – From initial configuration Lay-Out including adaptation to the aircraft center line connection point requirements and limitation, continue with structural design and analysis, systems integration, ground tests and completion with flight test and demonstration capabilities flights to the customer. The pod design and analysis, location, connection and integration performed in accordance with MIL STD 1289C and MIL STD 8591
Aircraft Modification Design and Analysis Some customers required an upgrading of existing aircraft such as modified civil aircraft to a special mission configuration, adaptation of new armament and external fuel tanks, addition of EW protection suite, addition of winglets, re-engine, and aerodynamic cleanup. Some examples of Aircraft Modification Design and Analysis which performed by Mr. Artzi: Upgrading of the Pilatus PC-9M for Slovenian Air force – These includes design of new cockpit systems and human engineering including installation of HUD, Armament control unit and more. All the design was compatible with MIL STD 1333B and MIL STD 1472F
External Stores Adaptation Adaptation of new external stores, compatible with MIL STD 8591 and MIL STD 1289C, including stress and aerodynamic analysis of the upgraded configuration and performance of flight tests and weapon release tests.
Installation of IRCM – Infra Red Counter Measure System to helicopter, including conceptual design of the modification by evaluating the preferred location and configuration for the IRCM system performance and the structural integrity of the helicopter, structural design and analysis, and supporting ground and flight tests.

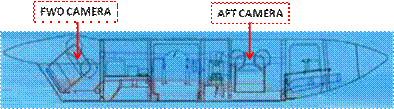

Modification of Beechcraft King Air B-200 Aircraft to Special Photography Mission aircraft Establishing the conceptual Lay-Out for the fuselage modifications, cameras locations, cut-outs location in the pressurized cabin and command and control station arrangement in the cabin. Performing detailed design of the modification and systems installation, Supporting the actual working on the aircraft, Supporting the ground and flight tests including verification of the cameras performance, preparing all the documentation for the FAA requirements and supporting the FAA certification process.
Modification of Beechcraft King Air B-200 Aircraft to Special EW Mission aircraft Establishing the conceptual Lay-Out for the fuselage modifications, EO Sensors locations, cut-outs location in the pressurized cabin and command and control station arrangement in the cabin. Performing detailed design of the modification and systems installation, Supporting the actual working on the aircraft, Supporting the ground and flight tests
|
